LASER MARKING MACHINES

For Metals and Plastics, Hall Marking, Engineering,Tools, Hardware, Led Lights, Mobile Phones & its Accessories, Electronics, etc.

DIODE PUMPED SOLID STATE LASER MARKING SYSTEMS

  • VLASE-IR LASER
  • VLASE-GREEN LASER
  • VLASE-UV LASER
  • AREX-FIBER LASER

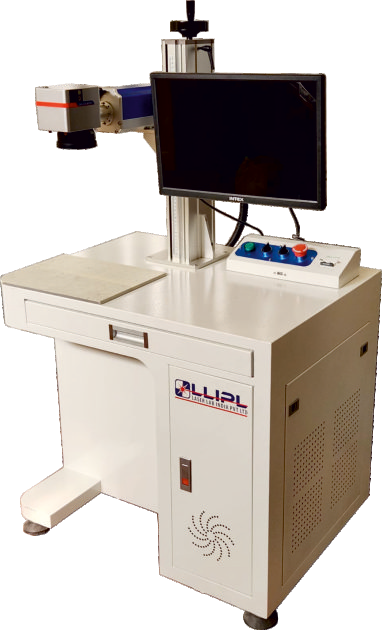

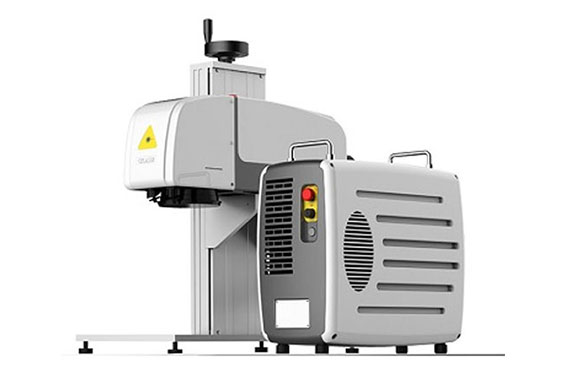

2D & 3D FIBER LASER MARKING SYSTEM

FL10/ FL20/ FL30/ FL/50/ FL100



BRIEF DESCRIPTION

This Fiber Laser Marking System is a revolutionary new laser marking machine using latest & most reliable Fiber Laser Technology. It is build using best of the components and optics to give long & trouble free operation. It produces very fine beam quality to mark from metals to plastics with same precision. Laser marking is permanent and gives product very nice aesthetic looks.

TECHNICAL SPECIFICATIONS & ADVANTAGES

  • Pretty, compact, convenient to carry Design.
  • All-in-One Design - the laser, the Laser controller and the D/A card - all in one box.
  • Highest peak power & fastest speed (up to 7000 mm/s)
  • Long Laser Source Life : 1,00,000 hours
  • Maintenance Free Operation, Air cooled Laser.
  • Marking Area : 110x110 mm standard (160x160 mm, 180x180 mm, 220x220 mm, 300x300 mm optional)
  • Can mark / engrave alpha numeric characters, automated serial numbering, bar codes, dot matrix codes, logos, monograms, images, photographs, etc. directly on the products.
  • Suitable for various materials like metals, plastics, ceramics, carbide, poly compounds, silicon, etc.
  • Machine Size : 725x210x450 mm
  • Low Power consumption : 300 Watt, Single Phase 230 VAC, 50 Hz Supply

2D & 3D FIBER LASER MARKING SYSTEM

LASER SOURCE SPECIFICATIONS

Main Features

  • RS232 and TTL interfaces
  • Up to 1mJ pulse energy
  • Up to 100W average output power)
  • Up to 20kW peak power
  • Frequency 200~50 kHz
  • High wall plug efficiency (>20%)
  • High beam quality (M²<1.35)
  • Forced air for efficient system cooling)
  • Optional output isolators, collimators and focusers



SPECIFICATIONS

Model FL10/20/30/50/100
Laser Wavelength 1064 nm
Frequency 200Hz ~ 50kHz
Laser frequency power 10/20/30/50/100 Watts
Max Marking Speed 7,000 mm/s
Repeat Precision 0.01mm
Power Supply 220V / 50/60Hz
Cooling Air-cooled
Controller USB controller



MOTORIZED - Z (Optional)

Various customized workstation designs available upon requirement such as workstation with rotary indexer, interfacing with online conveyor belt, automation, etc.

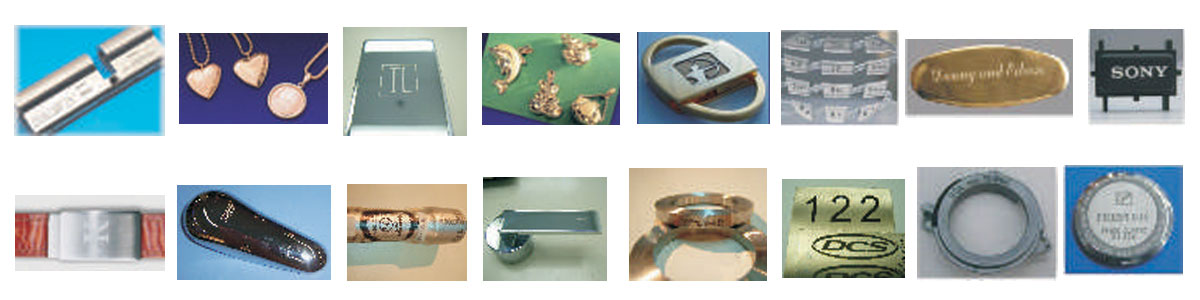

TYPICAL APPLICATIONS

LED Lights, Mobile Phones, Aviation and space flight parts, electronic components, hardware, kitchen & sanitary ware, cutting tools, hand tools, watch and jewellery, jewellery hallmarking, automotive, cycle & machinery parts, surgical instruments, orthopaedic instruments & implants, holograms, high security registration plates, sensor instrument, computer keyboards, Mobile phone key pads, communication apparatus, etc.
