LLIPL provides the best quality, highly reliable different types of CNC Routers/Engravers (like 3 Axis, 4 Axis to 5 Axis), of different Sizes and for many different applications & materials.
We have CNC Routers for beginners, first time users to professional users, for applications ranging from Wood Working, Furniture, Signage, Advertising Interiors, Exteriors, Panel Furniture, Stone, Marble, Granite, Ceramic Tiles, Aluminium, etc.
We can provide Routers with options like Automatic Tool Changer (ATC), Automatic Loading Panel Lift System, Advance Unloading Conveyor Table, High Capacity Router Spindles & Drilling Head as per the specific applications.
We also have 4 Axis Routers with Spindle Rotation Angle up to 270 Degree for complex processes like Side Punching and 5 Axis CNC Routers for Granite Kitchen Counter Top Engraving, Stone 3D Machining / Carving, etc.
Do contact us for your any specific needs at sales@laserlabindia.com
CNC Router / Engraver can machine a lot of different materials. Here listed just a few materials that can be machined 2D or 3D:
It is important to note that some materials like Aluminium, require cooling during the actual milling operation. The heat generation means that chips can clog or glue the flutes of the milling machine and the milling tool breaks. Suitable coolants and lubricants can be found in the range of most CNC milling machine manufacturers.
If you have decided to buy a CNC Mill to facilitate some work or to make special work possible, immediately one question comes to mind: “What do I have to consider when buying a CNC Router?
1.What size are my workpieces to be processed? 2.What engine power do I need for my hard / soft material? 3.How hard are the materials to be processed concerning the required torsional stiffness of the machine? 4.How exactly is the selected CNC Router adapted to my desired materials / workpieces?
Sign Making, General Wood Working, Letter Cutting, Door Making, Furniture Making, Electronic Industry, Exhibition Stands, Point of Purchase, Scenery & Sets, Solid Surface, Interiors, Foam Packaging, etc.

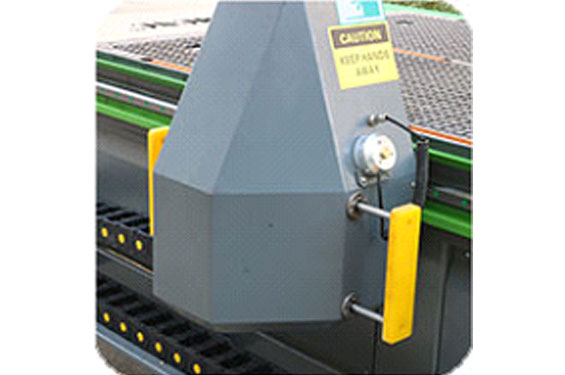

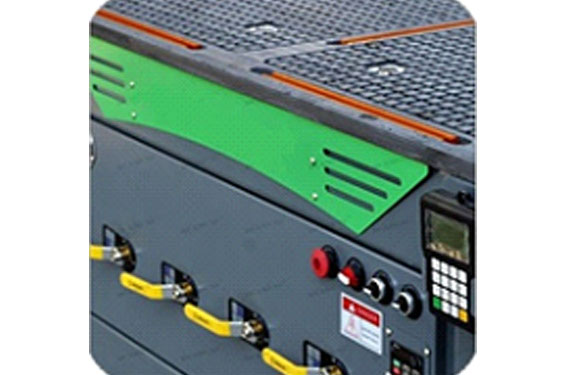

Safety protection system: LLIPL-CNC-A-Plus router inherits the safety protection system unique to our products and provides external emergency stop function for equipment users. This function can protect effectively the personal safety of the equipment users, meet the European safety CE standards, and is very popular among users.

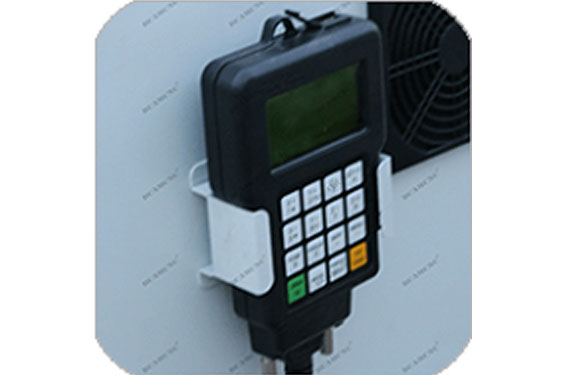

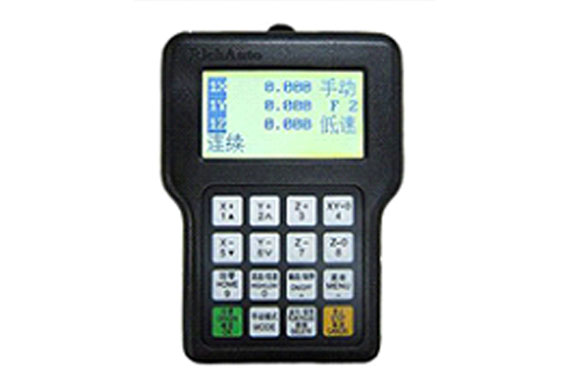

Control system: LLIPL-CNC-A-Plus router control system is famous DSP A11 which is simple and easy to operate, the system has a wide range of support documents, power-off continuous carving, 2D 3D relief and other functions, easy to operate, widely used.

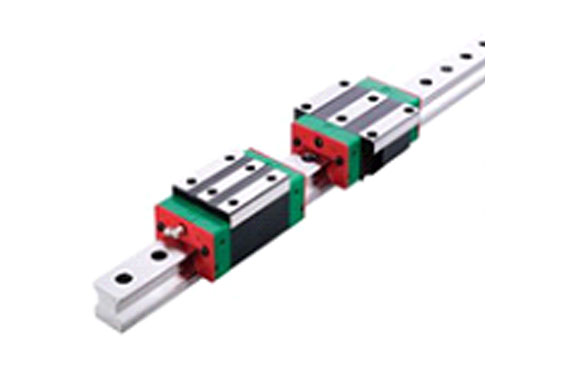

Rail device: LLIPL-CNC-A-Plus router rail system adopts Taiwan's HIWIN high-quality rail. This guide rail makes LLIPL-CNC-A-Plus work more accurately. The high quality pulley quality and excellent dustproof system also make CNC equipment last longer.

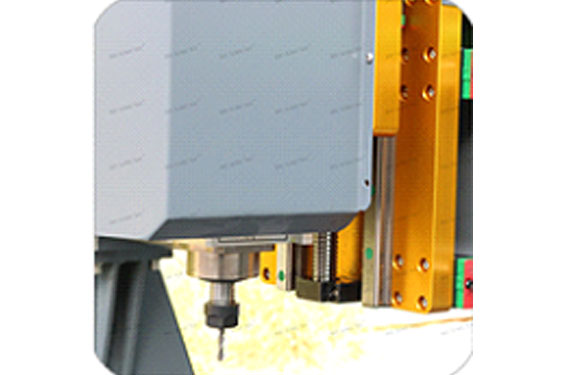

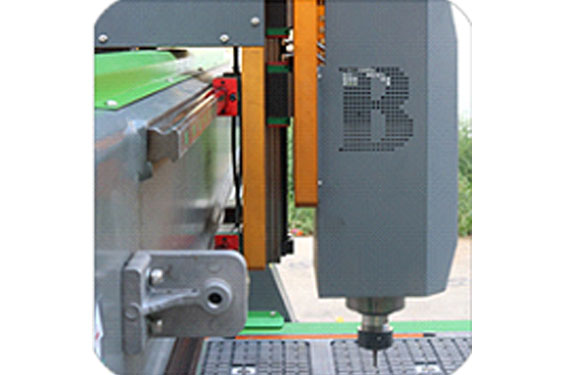

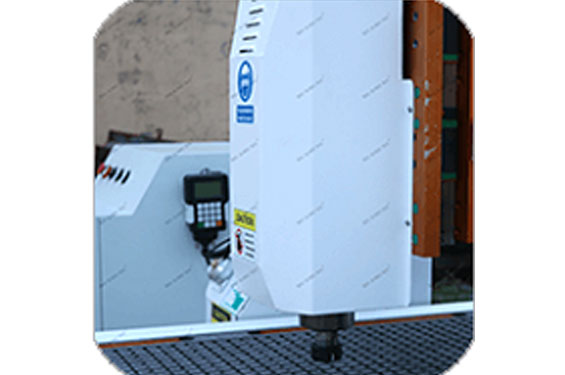

Spindle system: LLIPL-CNC-A-Plus router selects Italian HSD air-cooling spindle, power range: 3.0KW-7.5KW.Tools change hoose from manual, quick-release, high-power and high-speed spindles for optimum processing of rigid sheet materials.

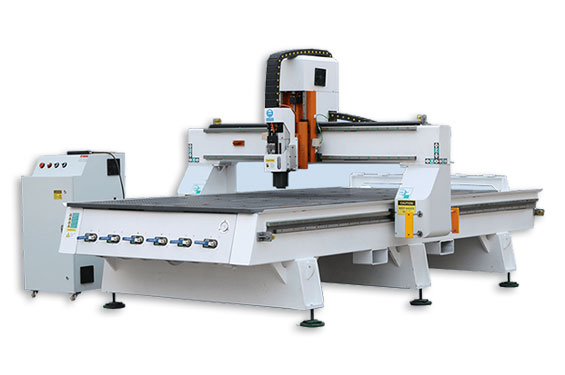

Parameters | Standard Specifications LLIPL-CNC-1325A Plus |
X,Y,Z Working Area | 1300*2500*200mm|4*8ft |
Optional Working Area | 1300*1300*200mm|4*4ft |
Optional Working Area | 11500*3000*200mm|5*10ft |
Optional Working Area | 2000*3000*200mm|6*10ft |
Optional Working Area | 2000*4000*200mm|6*13ft |
Optional Working Area | 2000*6000*200mm|6*20ft |
Spindle Power | 3.0kw water cooling spindle |
X,Y,Z Traveling Positioning Accuracy | ±0.05/2000mm |
Table Surface | Vacuum table + T-slot table |
X,Y,Z Rail and Transmission | X Y axis gear transmission, Z axis Taiwan TBI Ball Screw |
Max. Rapid Travel Rate | 30m/min |
Max. Working Speed | 25m/min |
Cutting thickness | According materials |
Spindle Speed | 6000-24000RPM |
Drive Motors | Leadshine stepper motor and drivers |
Working Voltage | 380V(220v)/3 phase/28amp or 220v/ Single Phase/32amp |
Command Language | G Code |
Operating System | Richauto A11 DSP control system |
Interface | USB |
Software Compatibility | Option:BCAMPRO/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc. |
Running Environment | Temperature: -20℃~45℃ Relative Humidity: 5%~75% |
General Wood Working, Sign Making, Plastic Fabrication, Aluminium & Metal Composite Cladding, etc.
1. The CNC Router S Series is designed for smaller sized businesses or shops but still offers the same great performance you expect from us. Due to our highly effective engineering and manufacturing processes, the S Series offers maximum versatility and can easily be integrated into existing workflows

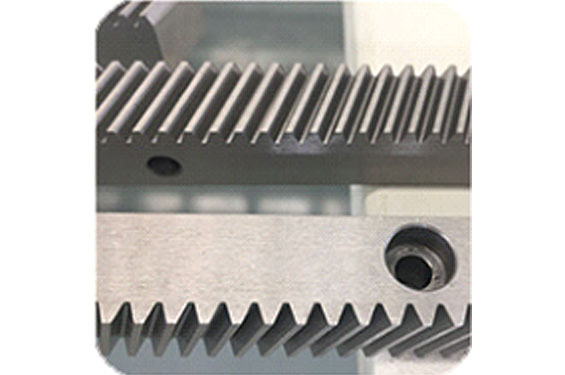

2.Constructed from a single-piece-welded steel frame along with an aircraft-quality aluminium gantry, the Router also features cast gantry supports which greatly dampen vibrations. Each axis of this CNC Router features helical racks to provide smooth motion and tight control for precise and quality cutting.
3. An all-new knife system which offers both oscillating and non-oscillating capabilities is standard on the CNC Router along with an optional second knife system. Depending on an end-users application, spindle options range from 4 to 10 HP.
4. Designed to cut a multitude of materials such as composite material, foam, plastic, wood, and much more the CNC Router is dependable and built to last. With many locations across the globe, service and support are always nearby and ready to help.
Taiwan HIWIN Spec Precision Linear Guide Rail for smooth motion and high accuracy
8 Inches of Z-Travel capability: perfect for thicker materials and deeper wood carving designs and applications.
Tensioned Roller chain on the gantry to reduce racking and improve accuracy
March3 March4(Ethernet Controller), Weihong DSP controller, Richauto A11 DSP controller, Taiwan Syntec, NC-Studio 53C, 95A, also with Wifi controller
Comes with 3.0kW Spindle and Inverter with water-cooling system. 110V or 220V or 380V available.
Standard Size 4' x 8'. We can alter the machine to fit custom lengths on X and Y axis travel. Get the cutting area you really need.

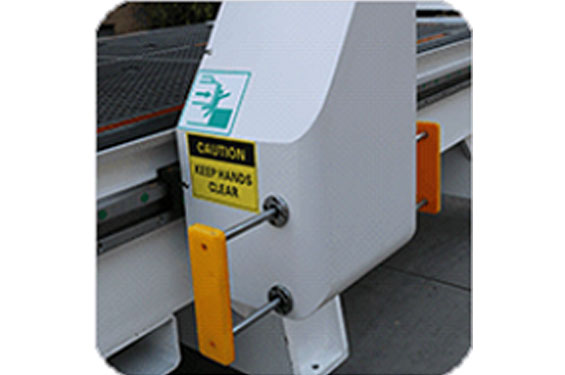

LLIPL S series has the unique safety protection system, and provides external emergency stop function for equipment users. This function can effectively protect the personal safety of the equipment users, meet the European safety CE standards, and is very popular among users.

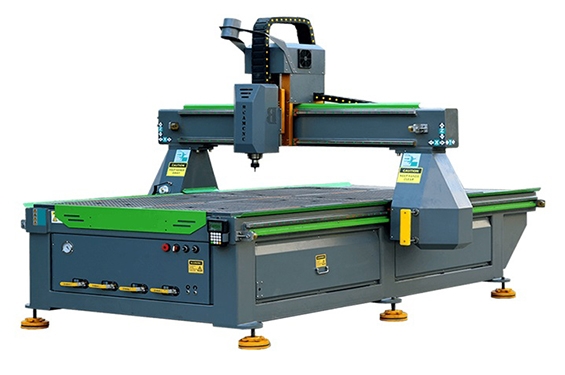

LLIPL-CNC-1325S Professional CNC Router
Parameters | Standard Specifications LLIPL-CNC-1325S Plus |
X,Y,Z Working Area | 1300*2500*200mm|4*8ft |
Optional Working Area | 1300*1300*200mm|4*4ft |
Optional Working Area | 1500*3000*200mm|5*10ft |
Optional Working Area | 2000*3000*200mm|6*10ft |
Optional Working Area | 2000*4000*200mm|6*13ft |
Optional Working Area | 2000*6000*200mm|6*20ft |
Spindle Power | 3.0kw water cooling spindle |
X,Y,Z Traveling Positioning Accuracy | ±0.03/2000mm |
Table Surface | Vacuum table + T-slot table |
X,Y,Z Rail and Transmission | X Y axis gear transmission, Z axis Taiwan TBI Ball Screw |
Max. Rapid Travel Rate | 40m/min |
Max. Working Speed | 30m/min |
Cutting thickness | According materials |
Spindle Speed | 6000-24000RPM |
Drive Motors | 4 sets High Torque stepper motor and drivers |
Working Voltage | AC220v 0r 380v/50HZ/3 phase,220v/1phase/50hz |
Command Language | G Code |
Operating System | Richauto A11 DSP control system |
Interface | USB |
Software Compatibility | Option:BCAMPRO/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc. |
Running Environment | Temperature: -20℃~45℃ Relative Humidity: 5%~75% |
