FUSION PRO LASERS
INDUSTRY’S HIGHEST-SPEED ENGRAVING
Introducing the fastest laser engraving systems on the market. Performance and image quality are at the heart of the Fusion Pro line of laser systems. With a maximum speed of 165 inches/second, and featuring 5g acceleration, the Fusion Pro lasers are the fastest, most productive laser systems available. Whether you’re engraving wood, plastic, coated metals or glass, the Fusion Pro allows you to produce more product in less time than any competitive system.
Enquire Now| Fusion Pro 24 | Fusion Pro 36 | Fusion Pro 48 | |
| Work Area |
24” x 24” x 9"
(610 x 610 x 228 mm) |
36” x 24” x 9"
(914 x 610 x 228 mm) |
48” x 36” x 12.25"
(1219 x 914 x 311 mm) |

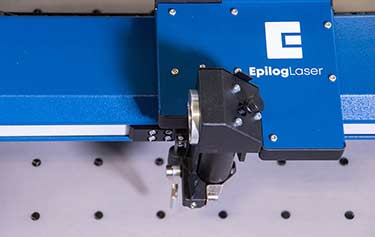

| Laser Options | CO2, Fiber, or Dual Source | CO2 or Dual Source | CO2, Fiber, or Dual Source |
| CO2 |
50, 60, or 80 watts
|
50, 60, 80, or 120 watts
|
|
| Fiber | 30 or 50 watts | n/a | 30 or 50 watts |
| Dual Source | CO2: 50, 60, or 80 watts / Fiber: 30 or 50 watts | CO2: 50, 60, 80, or 120 watts / Fiber: 30 or 50 watts | |
| IRIS™ Cameras | 2 overhead + registration | ||
Features: Benefits of Epilog’s Fusion Pro Laser System
The Fusion Pro laser engraving and cutting machines from Epilog are our top-of-the-line laser systems and combine a large work area with the latest technological features, including:

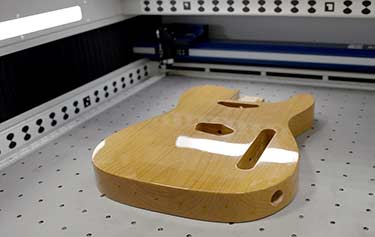

Highest-Speed Engraving Over Largest Work Area

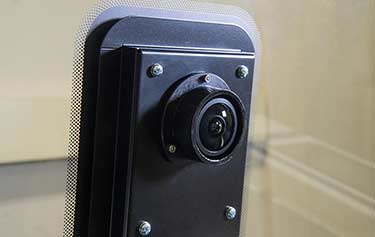

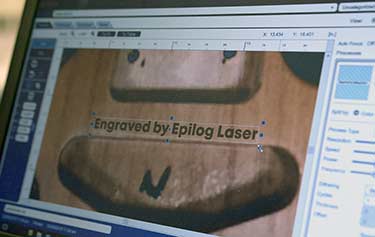

IRIS™ Camera Positioning

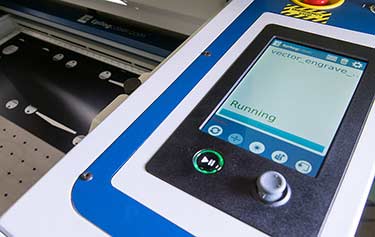

Touch Screen at the Laser

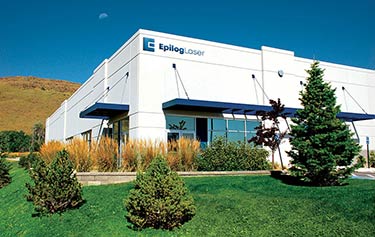

Engineered and Manufactured in the USA
Network Your Laser Across Your Business
SAFEGUARD™ Features

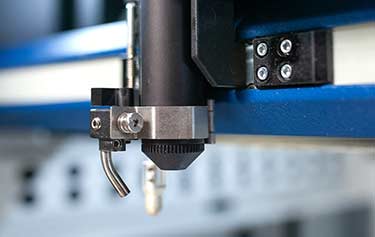

Air Assist and Compressor

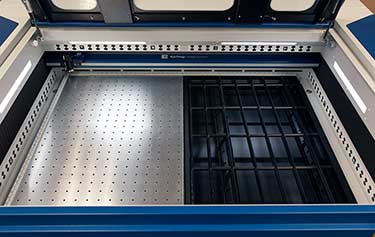

Split Table

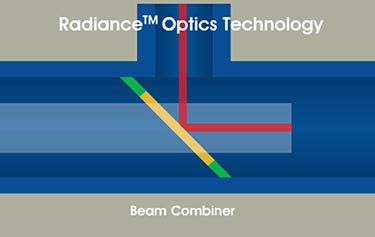

Radiance™ Beam Enhancing Optics

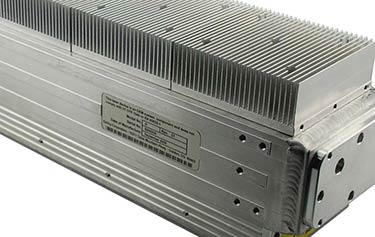

CO2 Waveguide Laser Tubes by Epilog
1 GB Memory in the Machine

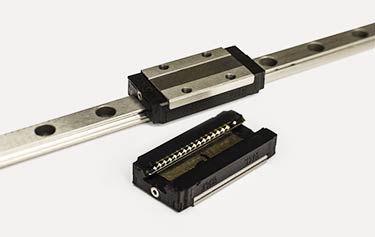

Long-Life Steel Bearing
Epilog Fusion Pro Technical Specifications
| Fusion Pro 24 | Fusion Pro 36 | Fusion Pro 48 | |
|---|---|---|---|
| Work Area | 24” x 24”
(610 x 610 mm) |
36” x 24”
(914 x 610 mm) |
48” x 36”
(1219 x 914 mm) |
| Maximum Z-Depth | 9” (228 mm) | 9” (228 mm) | 12.25” (311 mm) |
| Laser Tube Wattage |
CO2 - 50, 60, or 80 watt
Fiber - 30 or 50 watt
Dual Source - CO2 50, 60, or 80 watt with Fiber 30 or 50 watt |
CO2 - 50, 60, or 80 watt
Dual Source - CO2 50, 60, or 80 watt with Fiber 30 or 50 watt |
CO2 - 50, 60, 80, or 120 watt
Fiber - 30 or 50 watt
Dual Source - CO2 50, 60, 80, or 120 watt with Fiber 30 or 50 watt |
| Included Lens |
2" - CO2
3" - Fiber & Dual-Source |
||
| Optional Lenses | 4" - CO2 | ||
| Included Table | Vector Cutting Table (Grid-Style) | Task Plate | |
| Air Assist Pump | Optional | Optional | Included |
| Status Light | Included | n/a | |
| Software | Epilog Laser Software Suite: Laser Dashboard™ & Epilog Job Manager™ | ||
| Memory | Multiple files up to 1 GB. Engrave any file size. | ||
| Operating Modes | Optimized Raster, Vector, and Combined modes | ||
| Motion Control | High-speed, continuous-loop, brushless DC servo motors using rotary encoding technology for precise positioning | ||
| X-Axis Bearings | Ground & polished stainless steel, Teflon-coated, self-lubricating bearings. Dual blocks on X-axis for greater rigidity | ||
| Belts | Advanced B-style double-wide Kevlar precision drive belts. | ||
| Resolution | Fully-flexible and user-controlled from 75 – 1200 dpi | ||
| Speed and Power | 165 IPS (4.2m/s) with 5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and Raster/Vector mode. | ||
| Print Interface | 10Base-T Ethernet, USB. Windows 7/8/10 compatible | ||
| Size (W x D x H) | 41.52” x 32.81” x 40.54"
1055 x 834 x 1029 mm |
53.52” x 32.81” x 40.54"
1359 x 834 x 1029 mm |
70.6” x 51.3" x 42.75"
1794 x 1304 x 1086 mm Pedestal removed: 34” H (863 mm) |
| Weight | 240 lbs (108 kg) | 275 lbs (124 kg) | 650 lbs (295 kg) |
| Electrical | 110 to 240 volts, 50 or 60 Hz, single phase | 240 volts, 50 or 60 Hz, single phase | |
| Ventilation | 350-400 CFM (595-680 m3/hr) external exhaust to outside or internal filtration unit required. One output port, 4" (102 mm) diameter | Three total ports. Two upper exhaust ports, one lower vacuum table port. Total 735 CFM required. All ports 4” (102mm). | |
| Safety | Class 2 Laser Product – 1 mW CW Maximum 600 – 700 nm | ||
Epilog Fusion Pro CO2 Material Compatibility
| Engrave | Cut | |
| Wood | ||
| Acrylic | ||
| Fabric | ||
| Glass | ||
| Coated Metals | ||
| Ceramic | ||
| Delrin | ||
| Cloth | ||
| Leather | ||
| Marble | ||
| Matte Board | ||
| Melamine | ||
| Mother of Pearl | ||
| Paper | ||
| Mylar | ||
| Pressboard | ||
| Rubber | ||
| Wood Veneer | ||
| Fiberglass | ||
| Painted Metals | ||
| Tile | ||
| Plastic | - | |
| Cork | ||
| Corian | ||
| Anodized Aluminum | ||
| Stainless Steel | * | |
| Brass | * | |
| Titanium | * | |
| Bare Metals | * | |
| * CO2 lasers will mark bare metals when coated with a metal marking solution. For more information, visit our laser metal marking page. | ||
| Do you have a material you would like us to test? Our Applications Teamwould be happy to assist you. | ||
